Chinese Qingling Isuzu Giga 520 horsepower 8X4 Special Operation Vehicle Chassis (Euro VI)

Announcement Model: QL1180JQFR
Type: Chassis
Drive form: 8X4
Wheelbase: 2100+4400+1370mm
Engine: Qingling Isuzu 6WG1-TCG62
Transmission: 16-speed transmission
Rear axle speed ratio: 4.55
Vehicle body length: 11.115 meters
Vehicle body width: 2.54 meters
Vehicle height: 3.01 meters
Front track: 2140/2140mm
Rear track: 1855/1855mm
The total vehicle weight is 10.96 tons
Maximum speed: 85km/h
Origin: Jiulongpo District, Chongqing
Tonnage class: Heavy-duty truck
Approach Angle: 17 degrees (°)
Departure Angle: 24 degrees (°)
Front overhang/rear overhang: 1.37/1.95 meters
Energy type: Diesel
Engine brand: Qingling Isuzu
Engine model: Qingling Isuzu 6WG1-TCG62
Engine information: Isuzu 6WG1
Number of cylinders: 6 cylinders
Fuel type: Diesel
Cylinder arrangement form: straight line
Displacement: 15.681L
Emission standard: National VI
Maximum output power: 382kW
Maximum horsepower: 520 horsepower
Maximum torque: 2250N·m
Maximum torque speed: 900-1300rpm
Rated speed: 1800rpm
Transmission model: 16-speed transmission
Gear shifting method: Manual
Forward gear: 16th gear
Number of reverse gears: 2
Cargo box type: chassis
Cab: Flat roof
Cab width: 2200mm
Passenger capacity: 2 people
Number of seats: half a row
Speed ratio: 4.55
Number of spring plates: 4/4/5

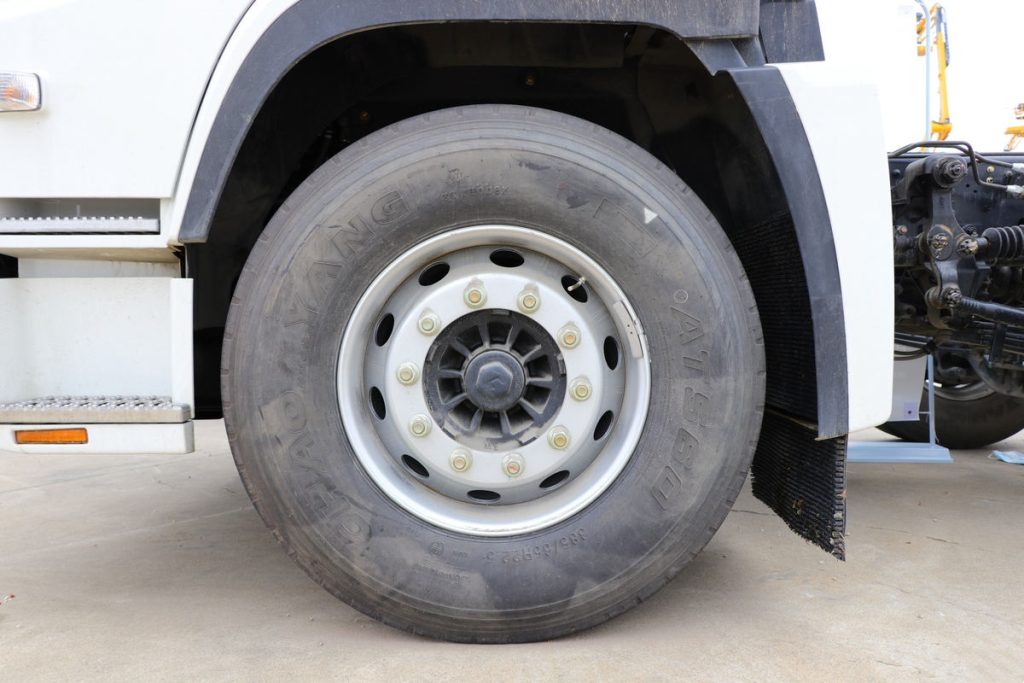

Tire specifications: 385/65R22.5 20PR/315/80R22.5 18PR
Number of tires: 12
